Pinecrest Gardens – Lower Garden Bathrooms design by S.E.A.

Pinecrest Garden – Lower Garden

The Village of Pinecrest asked Sebastian Eilert Architecture to provide a design for a new bathroom structure adjacent to the historic original entrance to the park. The free standing building had to blend into the existing park design and feature sustainable building practices, especially focusing on water conservation.

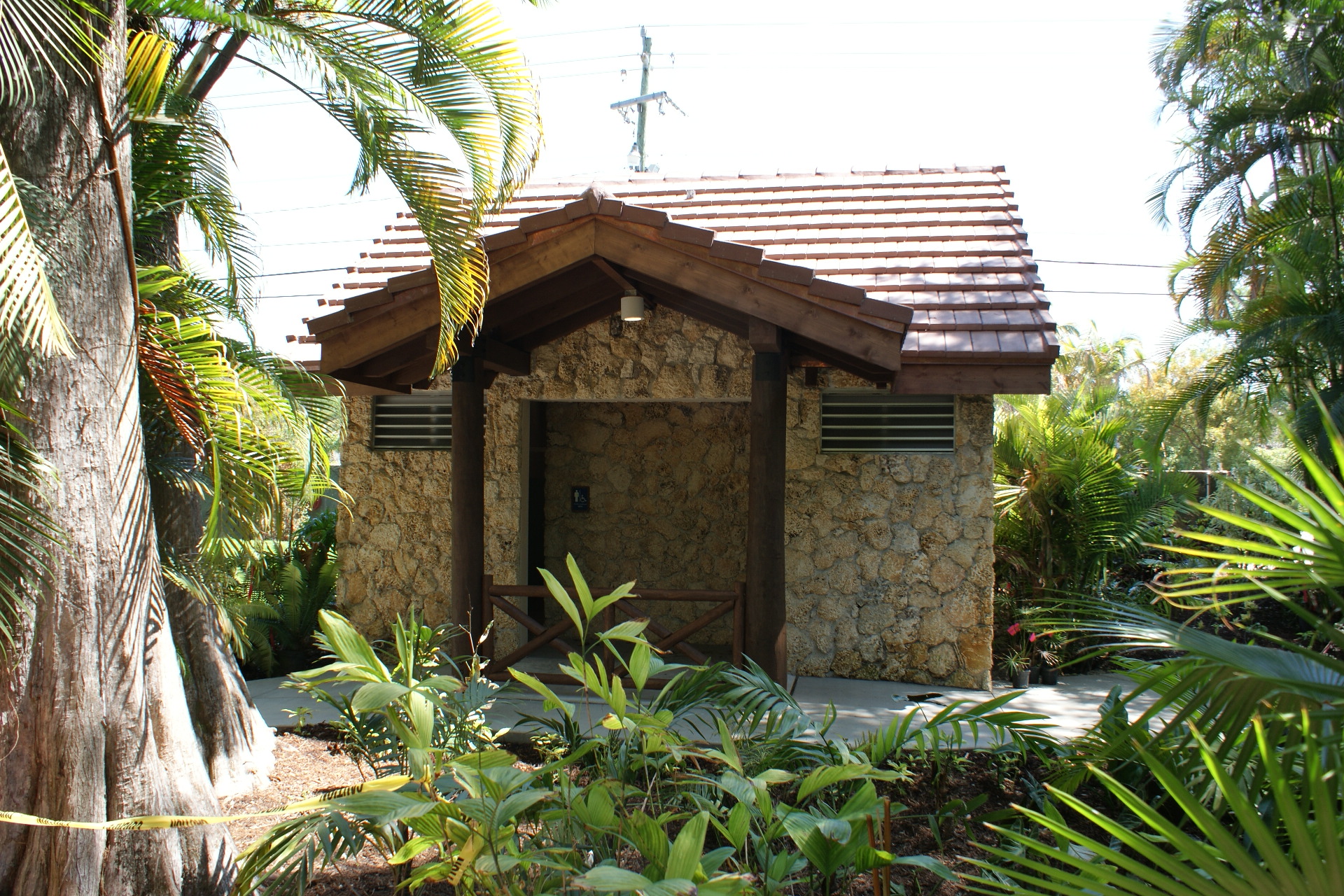

Lower Garden restrooms

The building was designed with exposed beams and rafters and a keystone façade to match the adjacent historic structure. To focus on water savings, the original design featured composting toilets and a system of two natural, planted tanks to filter the effluent residual water from the lavatories and compost excess.

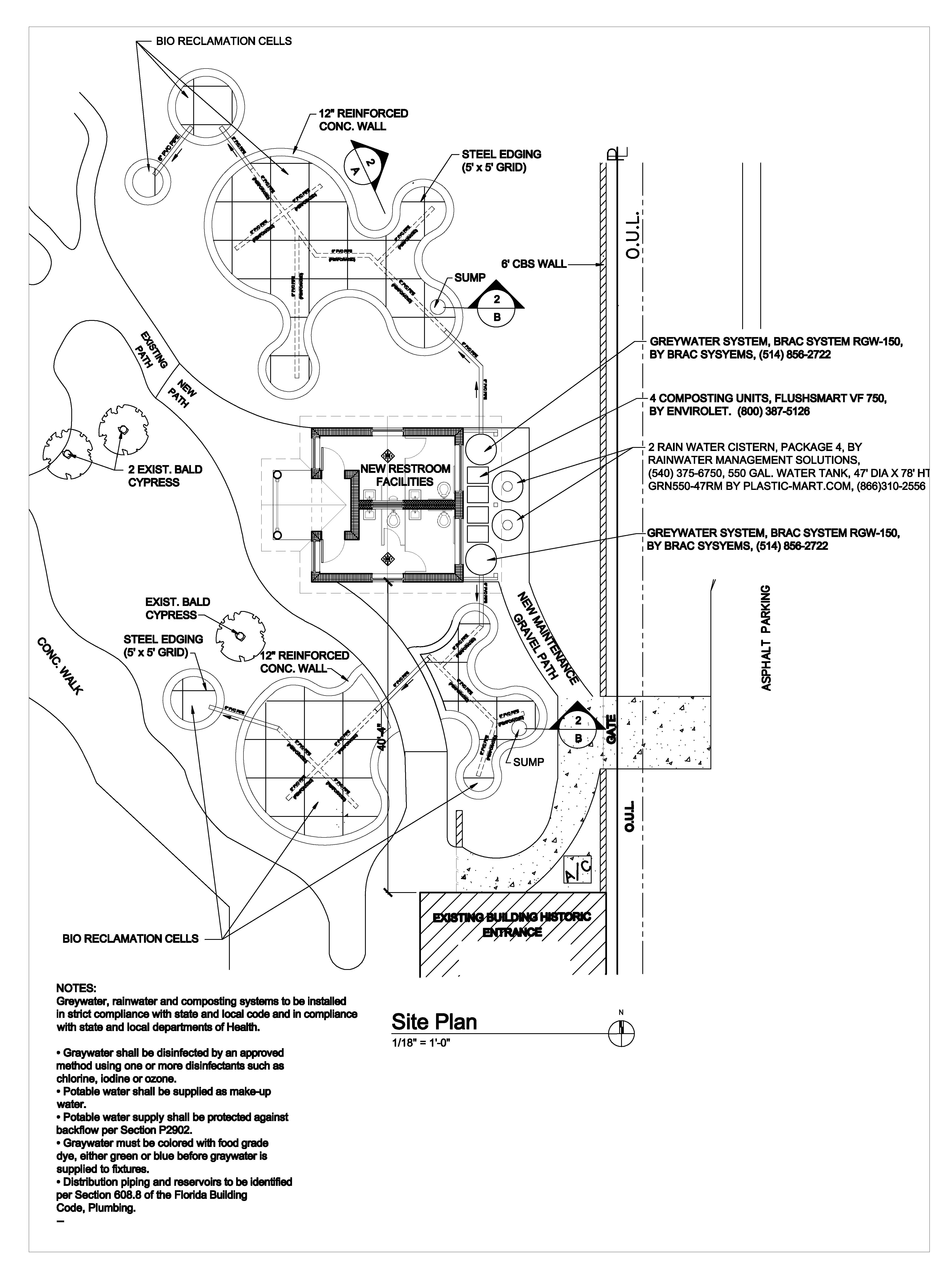

Greywater filtration ponds design.

Unfortunately, HRS did not approve the system and it was changed to a standard septic system. Fixtures were revised to very high efficiency and a waterless urinal. Excellent cross ventilation, LED lighting and non-VOC paint complete the sustainable design.

LED lighting and non-VOC paint and flooring

Sebastian Eilert Architecture is a sustainable architecture and Interior Design firm with its main office in Miami, Florida.  The boutique firm specializes in the quality design and delivery of custom new residential homes and light hospitality projects. Sebastian Eilert Architecture has significant experience in the design of Miami-Dade County criteria compliance, design for aging in place, durable and minimal maintenance design, as well as waterfront and off-grid projects.

Project highlights include the first USGBC LEED certified project for Miami Dade County, the Lower Garden Building in Pinecrest Gardens for the Village of Pinecrest, a durable focused residence in the Moorings neighborhood in Coconut Grove (no drywall or wood used in the project), a Contemporary style Coral Gables waterfront home with an original canal access boat house, and a major renovation and addition of a 1912 Coconut Grove Mansion (received a Sustainable Design Award from DHT).

German born principal, Sebastian Eilert AIA, LEED AP+ has been awarded, among others, the Historic Preservation, Sustainable Design Architect of the Year, and Young Architect of the Year award from the AIA Miami and honorary Emerging Green Builder from the University of Miami. Mr. Eilert was adjunct professor at the University of Miami and a frequent team member of the AIA National SDAT program.

Precision, quality, and dedication to timely completion distinguish Sebastian Eilert Architecture from its competitors… the German Way. Find more projects, and contact Sebastian Eilert Architecture to start your own project, on
